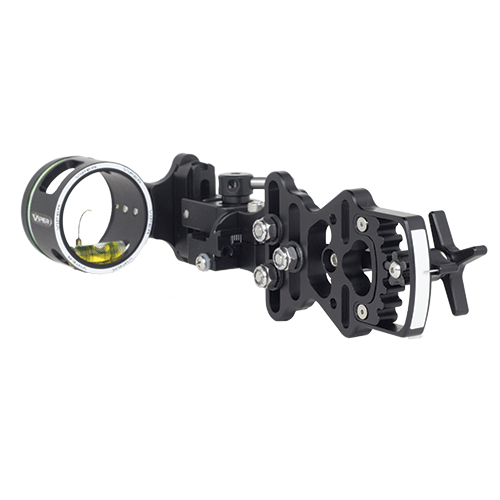

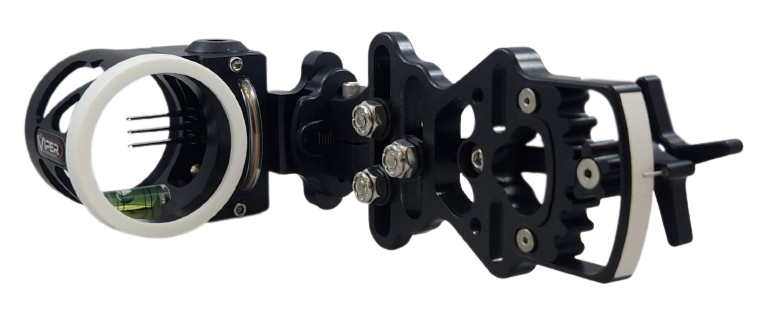

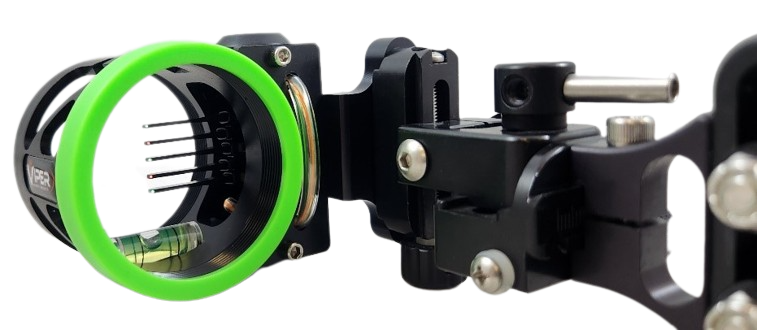

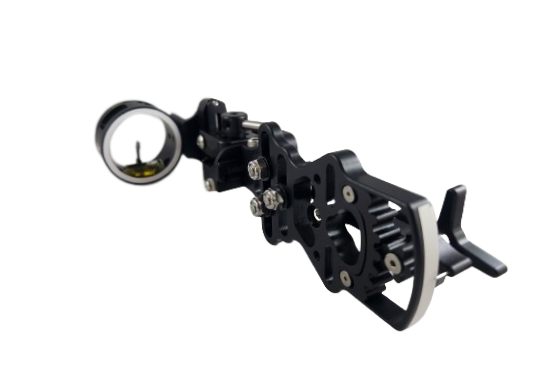

Sidewinder XL

Designed to bridge the gap between archery hunting and competition bow sights, the Viper Archery Products Sidewinder XL provides the fastest, easiest and most precise elevation adjustments of any single-pin sights on the market. The Sidewinder XL, with its longer sight radius and windage micro-adjustment capability, is truly a dual threat on the 3D course and in the field.

The sight’s elevation system is the most unique feature of the Sidewinder design; it is exceptionally functional, intuitive and quick to adjust, either on the course or in the field. It requires no lock screw, handle or knob to be loosened before adjusting for distance. The archer simply turns the four-winged aluminum Sidewinder knob at the back of the sight to set it to the desired yardage. Operation is quite smooth, thanks to the Delrin® thermoplastic gear-driven transfer system, and the sight housing remains horizontal throughout the range of travel. The sight can travel from its top-most position two inches down to the bottom position in less than one full turn of the Sidewinder knob. A .030-inch stainless steel pin on the Sidewinder transfer bar corresponds to a strip of white marking tape on the rearmost surface of the sight. This allows the user to precisely mark distances of the specific equipment being used, and it can be replaced or taped over if the equipment setup is changed.

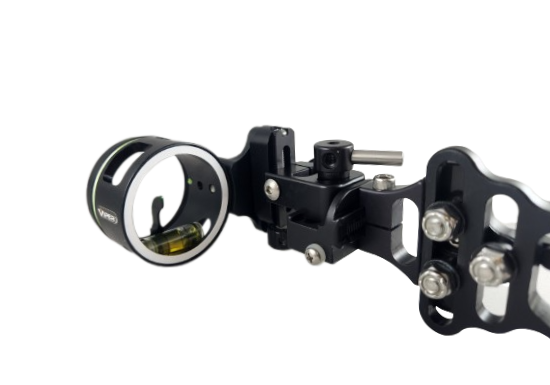

The Sidewinder housing unit has elevation and windage adjustments that requires use of an Allen wrench to fine-tune the head position. In addition to its longer sight radius, the Sidewinder XL also incorporates a micro-adjustable windage system that is secured by a lever lock. The XL’s micro-adjustment system allows for precise sighting-in as well as for easy adjustments in the field or on the run.

The Sidewinder XL is 8.5 inches long and tips the scale at 10.2 oz.

• Longer Sight Radius than Sidewinder
• 2nd-Axis Adjustment
• 2″ Aperture
• 1-inch-long bubble level
• A highly visible 0.35-inch diameter
• Delrin Bushings for Ultra Smooth Adjustment
• 6061 T6 Construction
• All Stainless-Steel Hardware
• Micro-Adjustable Windage & Elevation

• Threaded for an Optional Sight Light
• Threaded for an Optional Lens
• The option to swap for a Stainless-Steel Competition-Style Up-Pin is available for a $10.00 upcharge.
• Pin Sizes: .010, .015, or .019

Looking To Add a Lens to a Housing with a Single Pin and Double Up Pin:? Please follow this link: https://viper-archery-products.myshopify.com/products/lens-kit-retainer-ring-and-o-ring

Looking To Add a Lens to a Housing with Multi Pins? Please follow this link: https://viper-archery-products.myshopify.com/products/venom-series-lens-kit

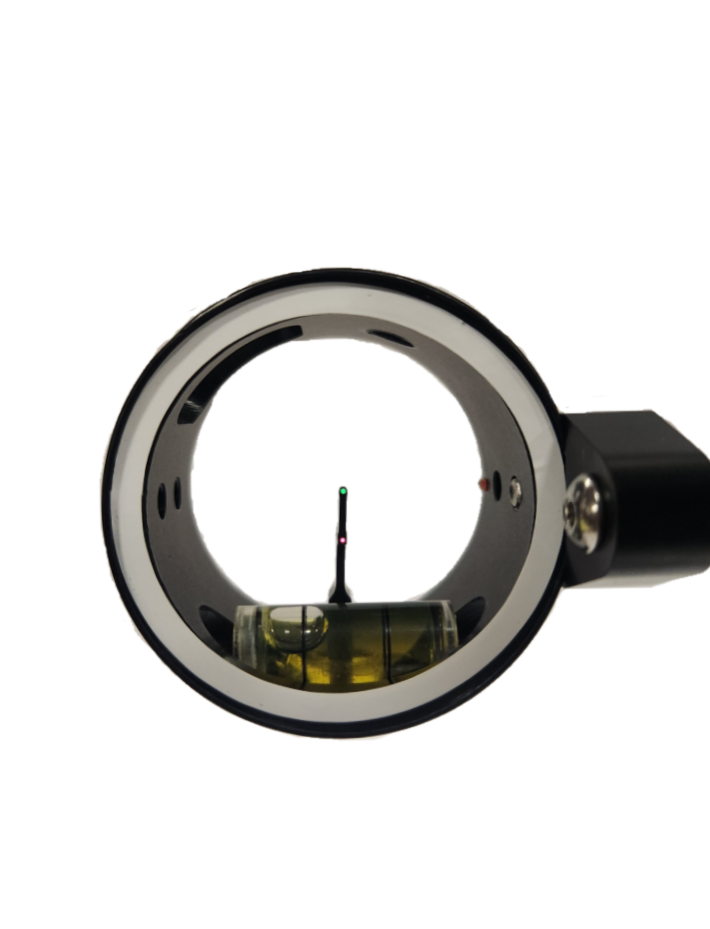

Quick Note About the Double Up Pin Fibers - Same size fibers with green on top and red on the bottom. For custom orders please contact us at info@viperarcheryproducts.com.
